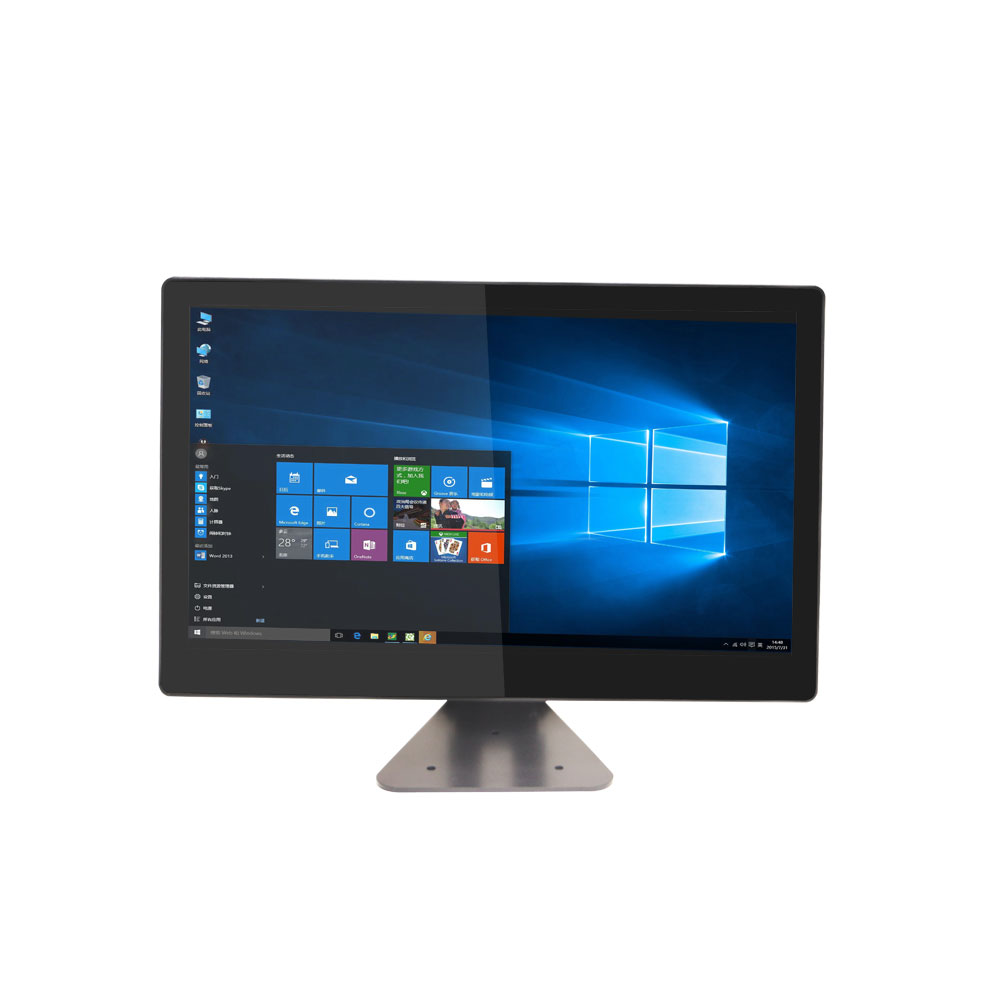

F15 APL 15.6''Tablet pc
F15 APL 15.6''Tablet pc
F15 APL 15.6''Tablet pc
F15 APL 15.6''Tablet pc -
F15 APL 15.6''Tablet pc
- Size:379 x 241 x 44mm
- Model:F15 APL J3355
- Brand :Higole/ODM
F15APL 15.6inch touch pc1. Intel Celeron powerful CPU, fast speed2 Mini size, 15.6” 1920*1080 IPS FHD resolution3. Low power consumption, less than 10w4. Dual
F15APL 15.6inch touch pc
1. Intel Celeron powerful CPU, fast speed
2 Mini size, 15.6” 1920*1080 IPS FHD resolution
3. Low power consumption, less than 10w
4. Dual Frequency WIFI, 2.4G&5G and 1000Mbps Gigabit Lan
5. With HDMI(up to 4K), BT, RJ45, RS232 com port, USB3.0, USB2.0, Audio Jack, TF Card reader,
7. Fanless, 7*24 hours operation
8. Wake up on lan, PXE, Auto power on
10. Standard 75*75mm Vesa Holes, can be mounted onto the wall or desk
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | 15.6" Tablet pc | ||||
| Dimensions | 379 x 241 x 44mm | |||||
| Weight | 1.6KG | |||||
| LCD | Screen Size | 15.6" | ||||
| Screen Resolution | 1920×1080 (IPS + 250ANSI) | |||||
| TP | Touch Module | G+G Multi-Touch | ||||
| Battery | CMOS battery | Yes | ||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Apollo LakeJ3355 Quad-Core | ||||
| Speed | 1.10GHz ~ 2.20GHz | |||||
| GPU | Type | Intel HD Graphics 500 | ||||
| Memory | Capacity | 4GB (LPDDR4) | ||||
| Storage | eMMC | 64GB | ||||
| SSD (M.2; 22×42mm) | Optional (Support Customized as MOQ order) | |||||
| Speaker | Built-in | 8Ω/1W | ||||
| Micphone | Built-in | Optional | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band | ||||
| Bluetooth | BT Module: Intel AC3165 | Bluetooth4.2 | ||||
| Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 Host | ×2pcs | ||||
| USB2.0 Host | ×2pcs | |||||
| SD / TF Card reader | TF Card reader | ×1pc | ||||
| Audio Jack | 3.5mm headphone | ×1pc | ||||
| HDMI | HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| COM Port | DB9 (RS232) | ×1pc (RS232×1pc) | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| CMOS Reset | Reset by Short Press | Yes | ||||
| VESA hole | Standard 75 × 75mm VESA hole | Yes | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 12V/2A | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| VESA Mount | Standard 75×75mm VESA Mount on desk | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Power on Function | By Power Button or Auto Power on | Optional | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | Support | ||||
| PXE | Preboot Execution Environment | Support | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
